SPECIFICATIONS
16340 Battery: Rechargeable battery
Body Material: Aluminum alloy
Brand Name: XTAR
CR123A Battery: Non-rechargeable battery
Certification: ce,FCC,ROHS
Charger: Rechargeable
Color: WHITE
Flashlight Type: Diving Camping Hiking Tents
Focal Length: Adjustable
Function: Hard Light
High-concerned chemical: None
Is Batteries Included: Yes
Item Type: FLASHLIGHTS
Lamp bead color temperature: 6000K-6500K
Light Source: Fluorescent
Lighting Distance: < 50 m
Lumen: < 100
Material: AL6063 POM
Model Number: SD1
Model of LED Beads: 3535RGBW 2W
Origin: Mainland China
Support Dimmer: 2 - 4 Files
Switch Mode: High/Middle/Low
Voltage Range: 2.0-4.5V
Waterproof: Yes,100M Underwater
Wattage: 1.6W max
mode: 4 light sources,8 light modes

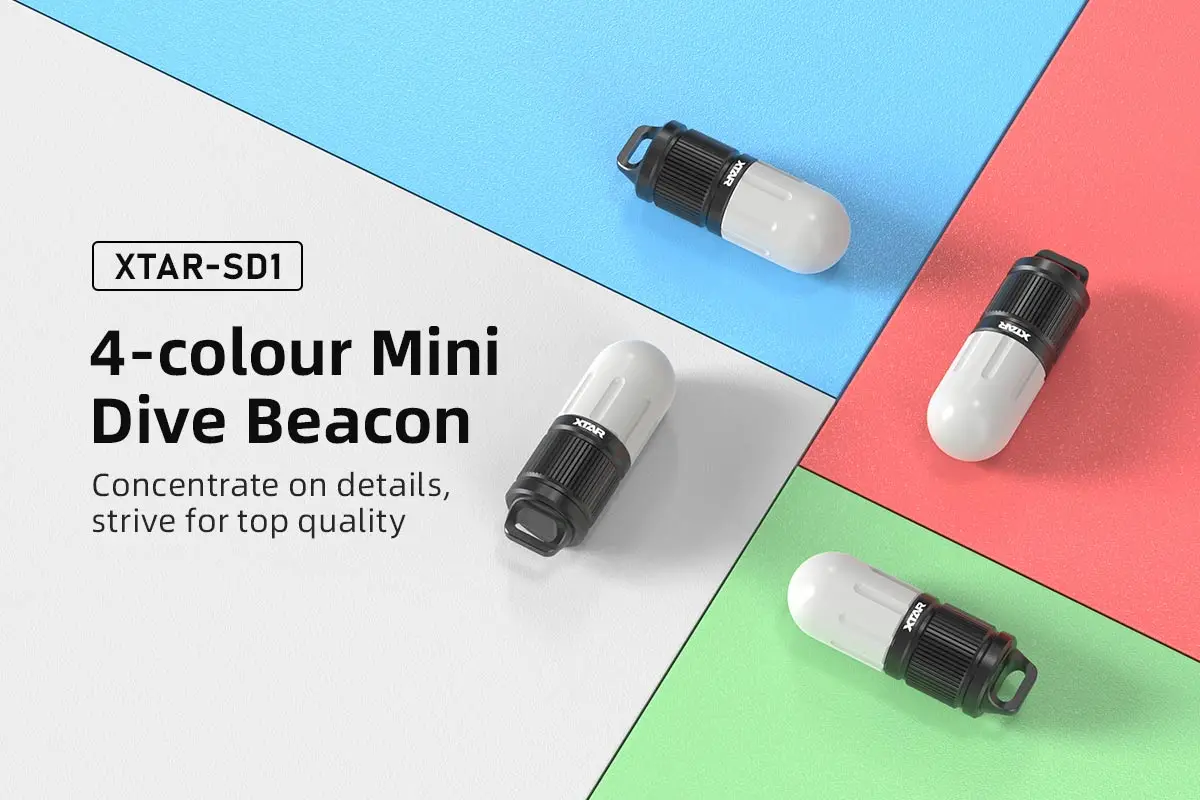

XTAR-SD1-4-Colour Mini Dive Beacon

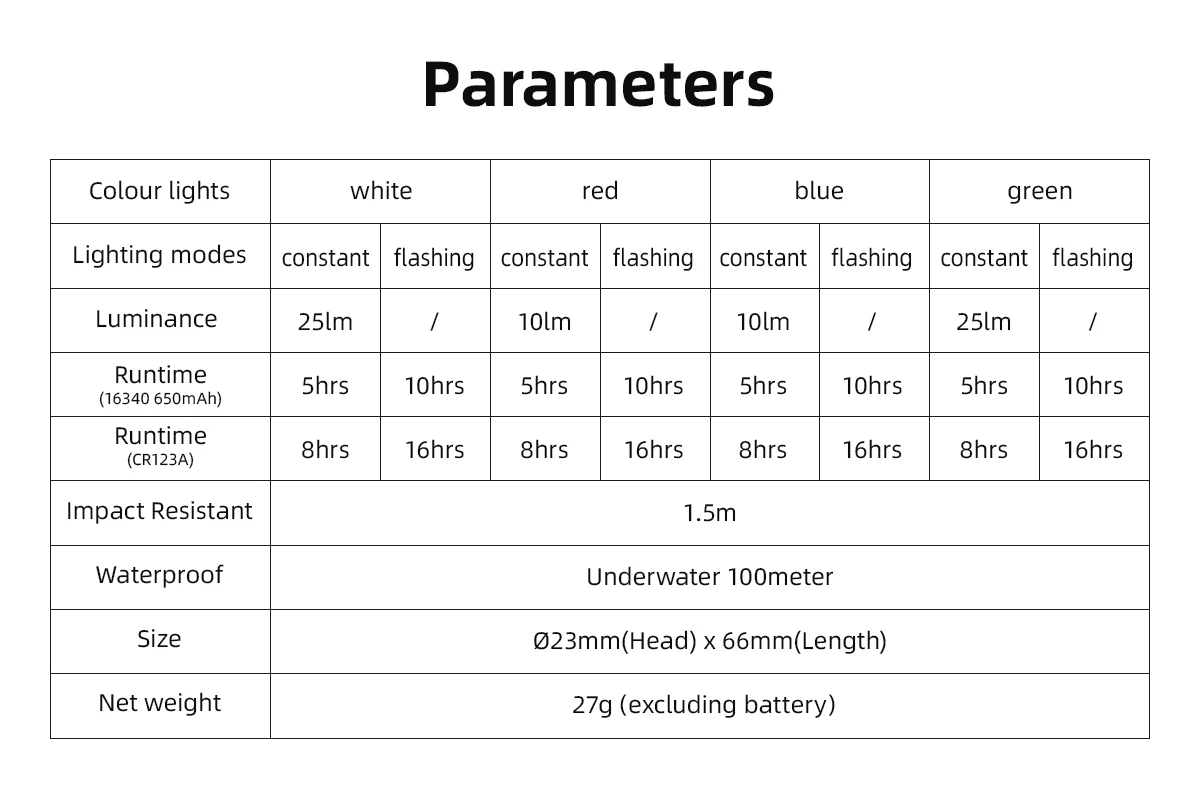

Specifications:
~Size: Φ23mm × 66mm
~Application: Underwater 100m diving, outdoor lighting

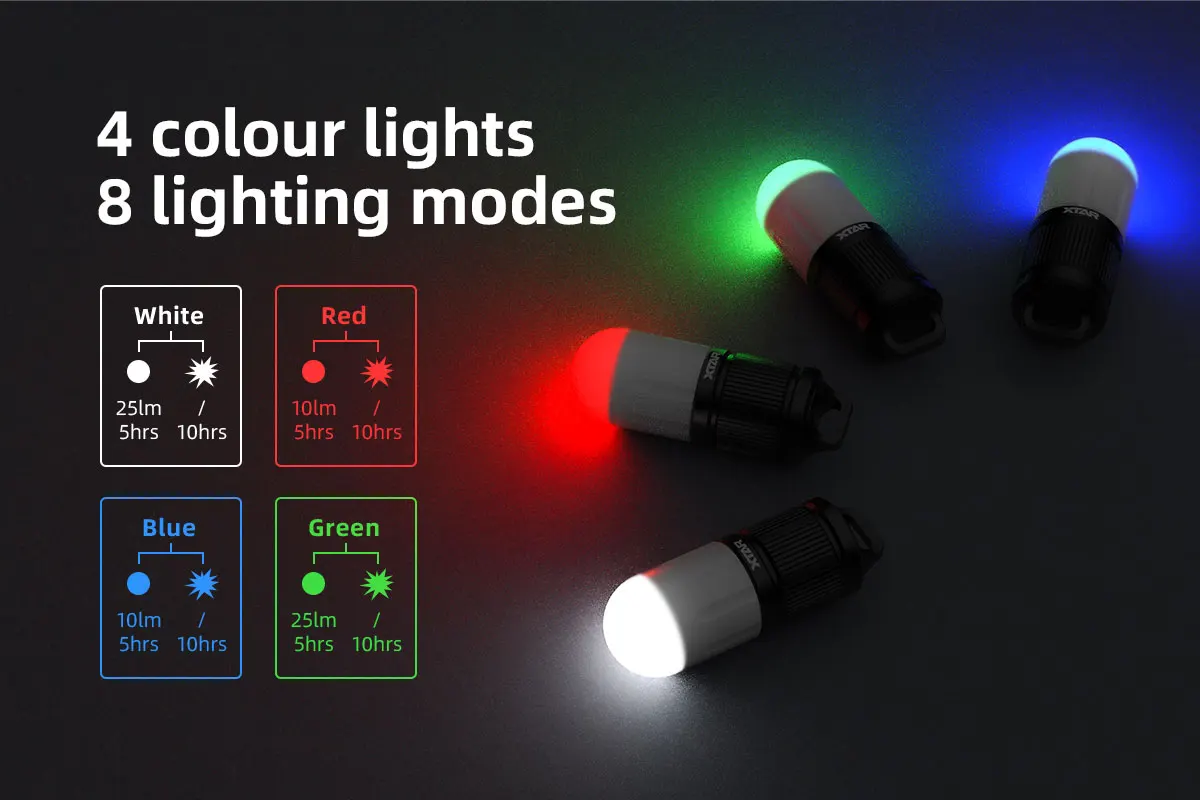

~Light Source: 4 colours, 8 lighting modes

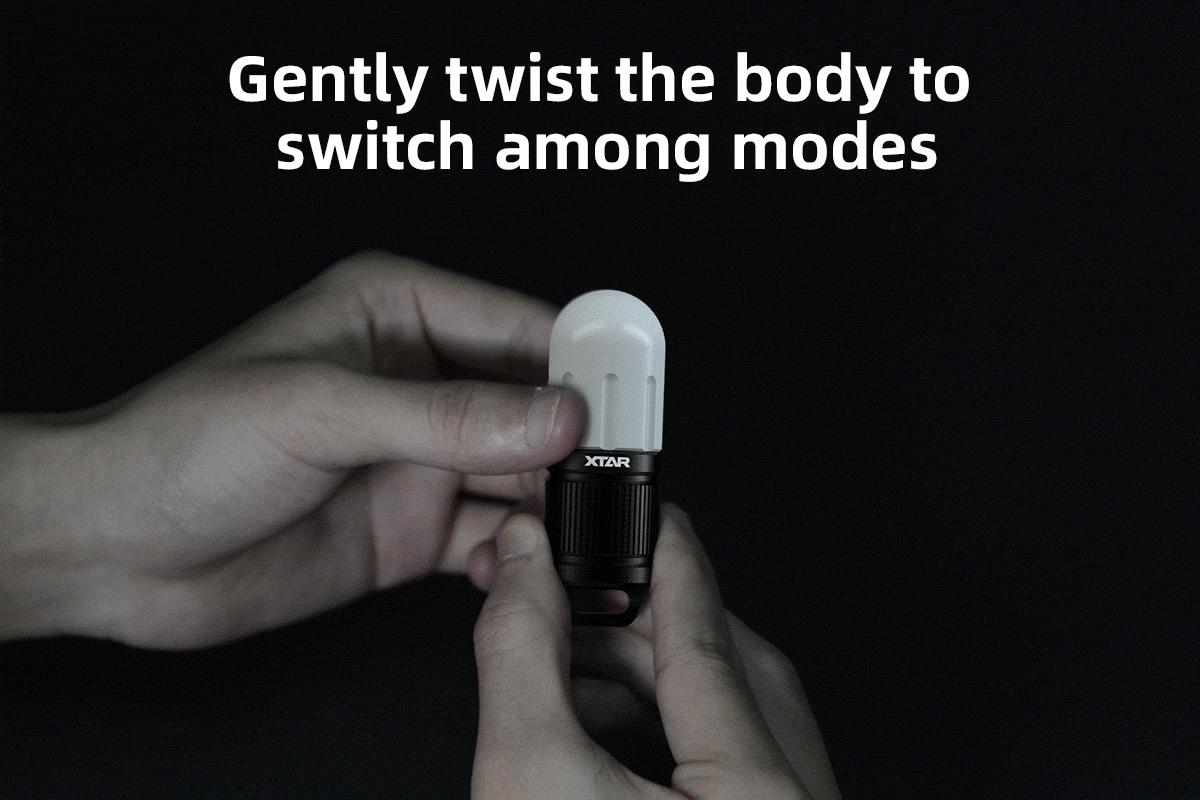

~Operation: Gently twist the body to switch modes

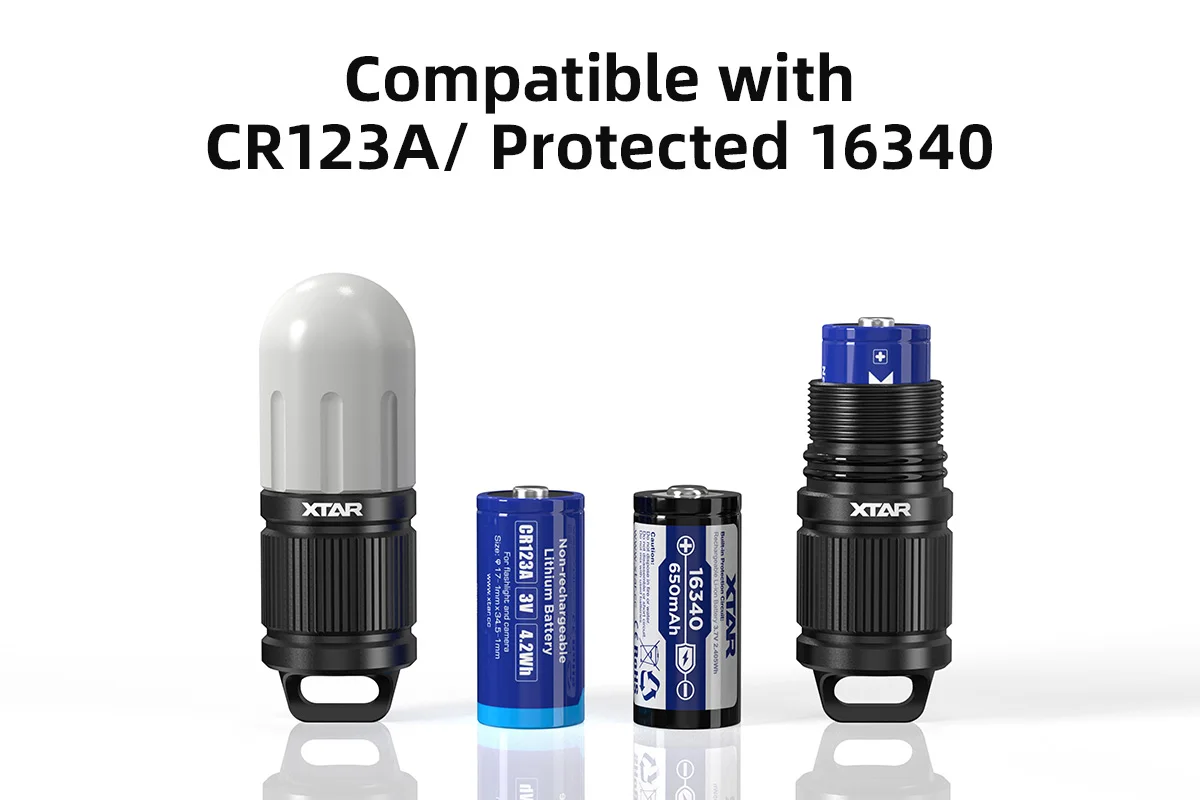

~Compatible Batteries: CR123A / Protected 16340

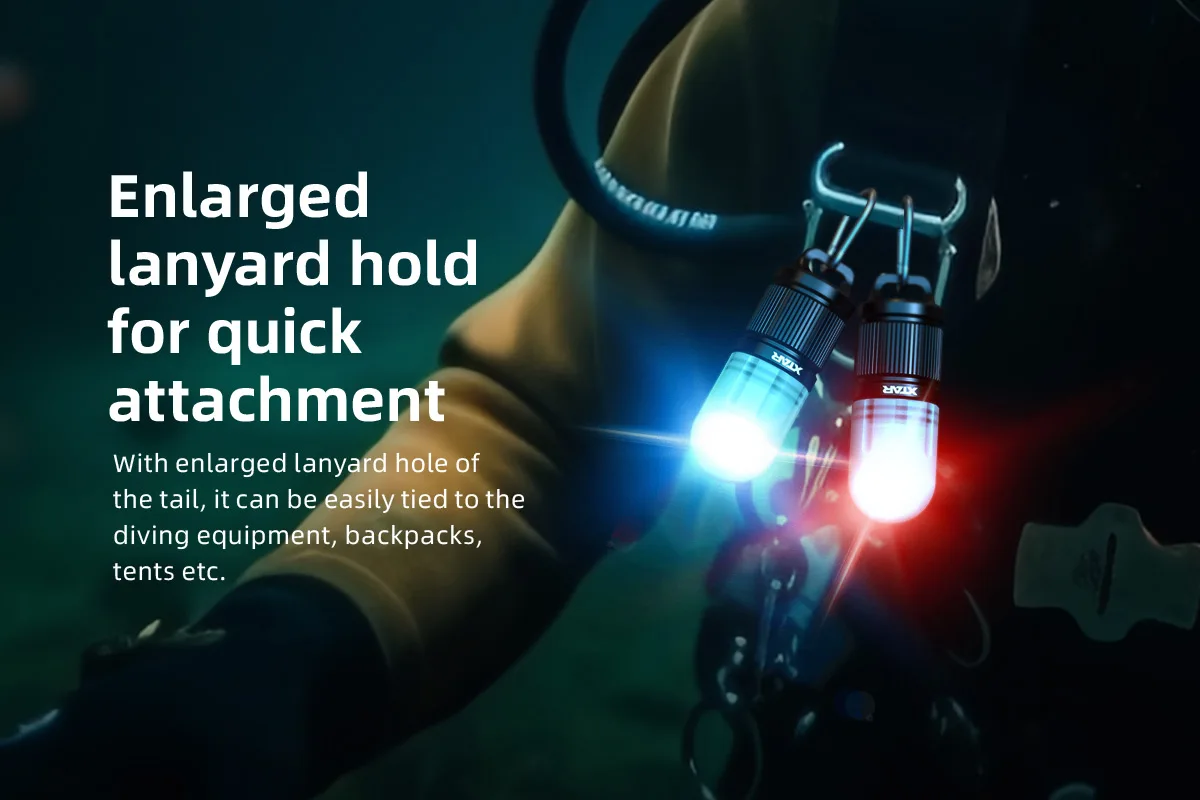

~Features: Low power reminder, mode memory, enlarged lanyard hole for quick attachment
Operation Instructions:
Insert the battery into the body and tighten the head to turn on the LED. Twist the head clockwise to turn on, counterclockwise to turn off. To switch modes, power on again within approximately 3 seconds after turning off.
Mode switching sequence:
White constant on → White flash → Red constant on → Red flash → Blue constant on → Blue flash → Green constant on → Green flash

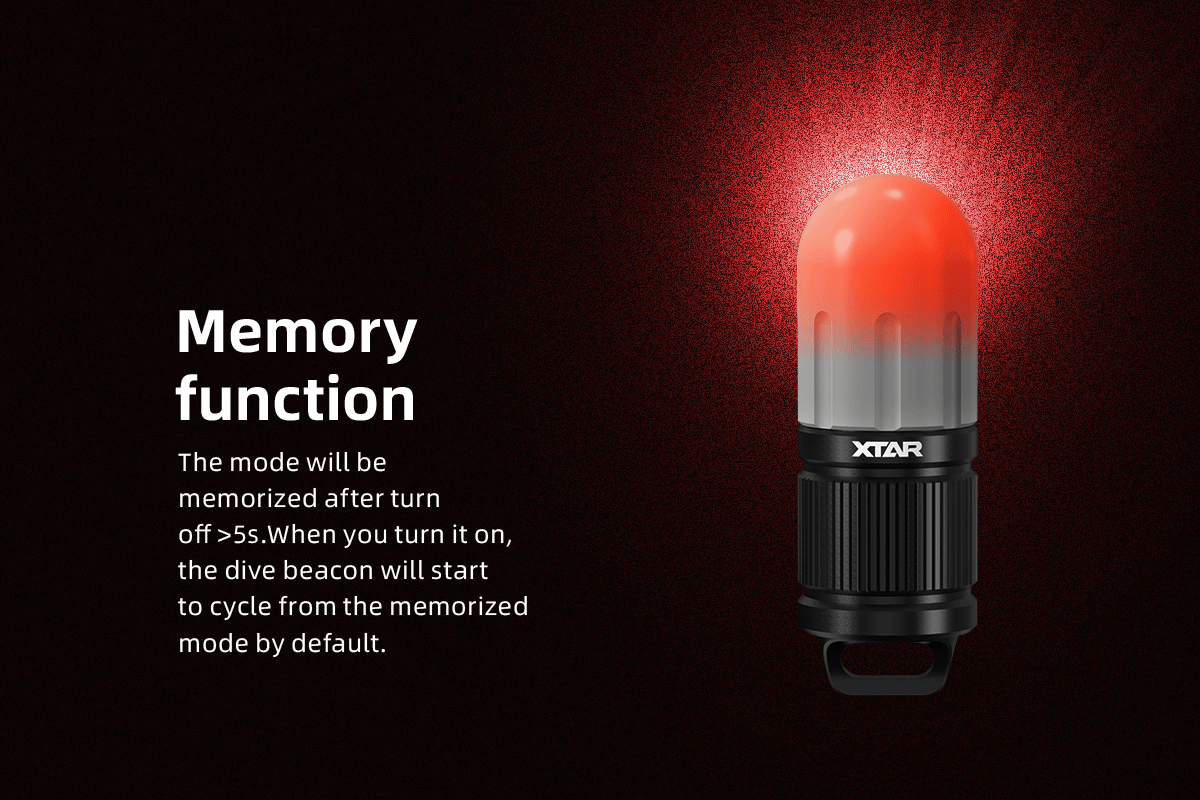

Note: If the power is disconnected for more than 5 seconds, the light will turn on in the same mode as when it was last turned off.

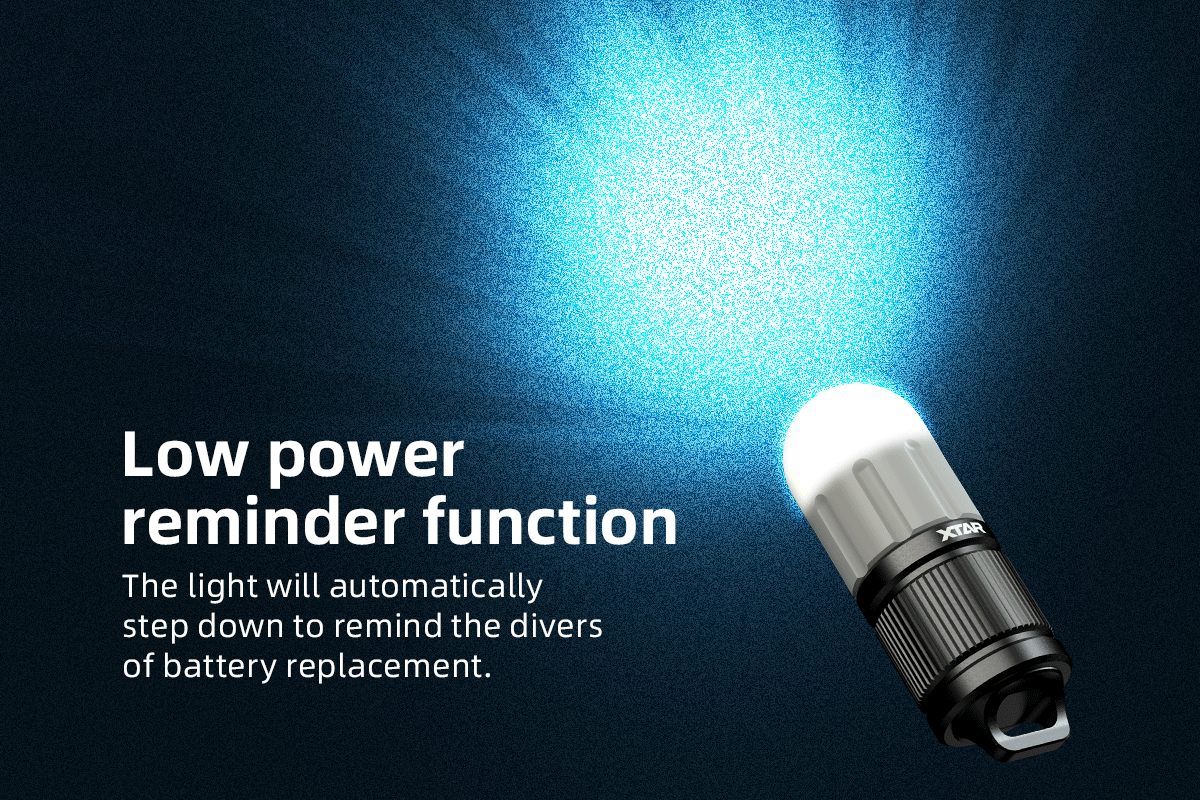

Low Voltage Protection:
The product automatically identifies the battery type and applies corresponding low voltage protection:
When using a CR123A disposable lithium battery (voltage < 3.4V), when the battery voltage drops below approximately 2.0V, the output will automatically step down, and the light will turn off after approximately 10 minutes, entering sleep mode.
When using a 16340 rechargeable lithium-ion battery (voltage > approximately 3.4V), when the battery voltage drops below approximately 2.9V, the output will automatically step down, and the light will turn off after approximately 10 minutes, entering sleep mode. This helps prevent over-discharge damage to the rechargeable battery. For optimal performance, it is recommended to use a fully charged 16340 battery with a voltage above 3.6V to ensure proper battery type identification.

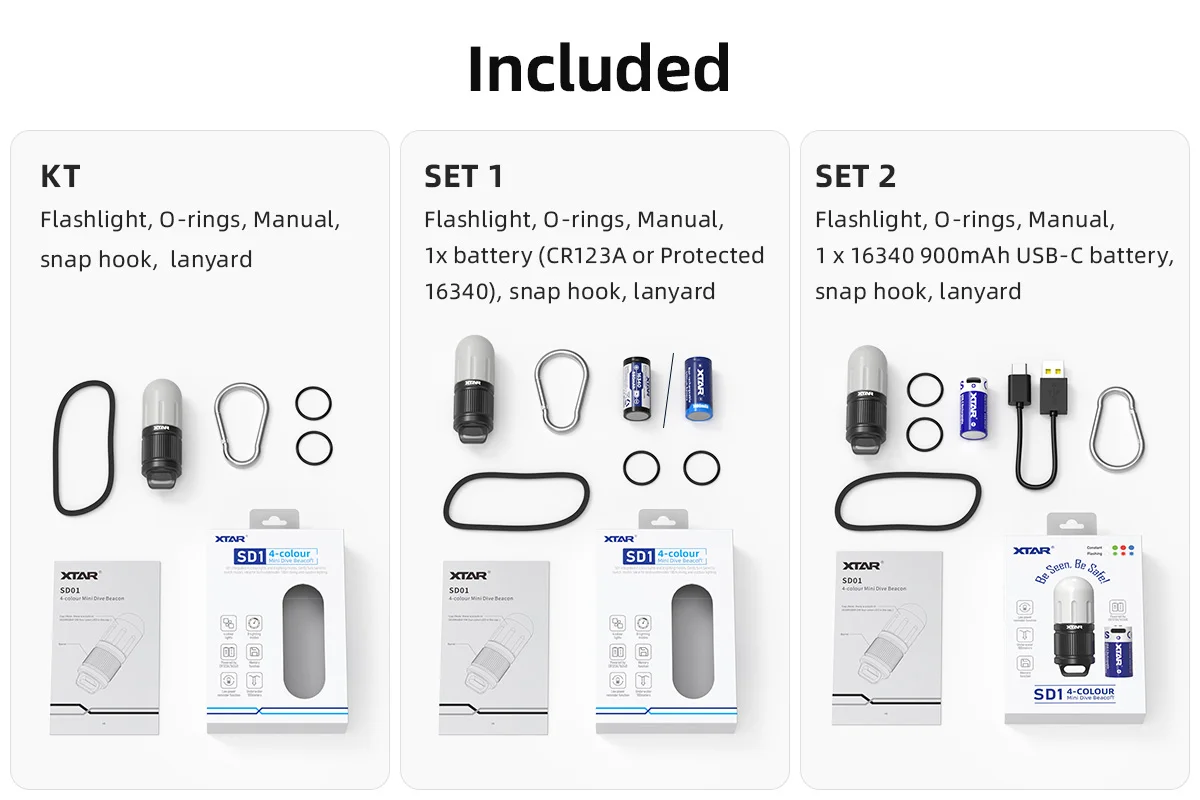

Package Options
This product is available in the following four configurations:
~SD1 KT: SD1 Beacon only (battery not included)
~SD1-CR123A: SD1 Beacon + CR123A 1400mAh battery (disposable, non-rechargeable)
~SD1-16340: SD1 Beacon + 16340 protected 650mAh battery (rechargeable)
~SD1-16340 USB-C: SD1 Beacon + 16340 USB-C 900mAh protected battery (rechargeable)
</
